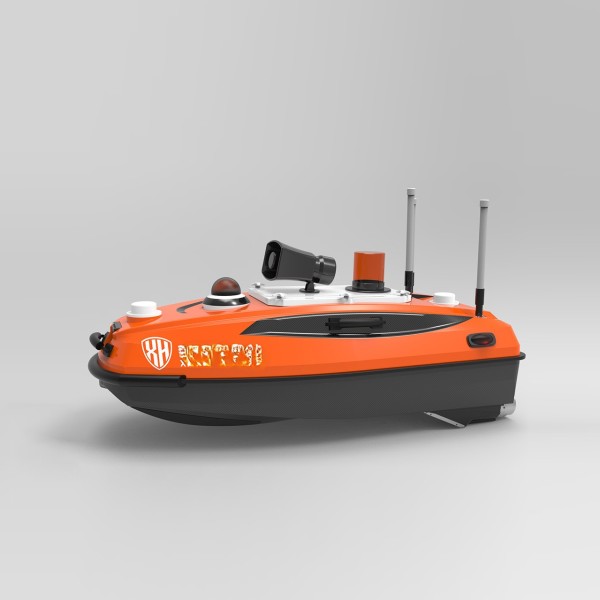

Unmanned Water Detection Boat
Developed specifically for emergency rescue, fire disaster relief, public security law enforcement and other scenarios, the unmanned water detection boat is a high-performance device for water safety management and emergency response. It delivers outstanding capabilities for water patrol and surveillance, supporting three operation modes: remote control, autonomous straight-line navigation and surface hovering, to meet diverse task requirements including patrol, reconnaissance and mapping.
I. Core Functions
1. Water Reconnaissance & Monitoring
① Real-time high-definition video transmission with 360° panoramic view
② Two-way real-time voice communication
③ Water patrol and reconnaissance, automatic alarm for abnormal events
④ Acoustic and light warning to dispel suspicious targets
2. Precision Hydrological & Environmental Measurement
① Compatible with professional equipment including ADCP, depth sounder, water quality monitor, side-scan sonar and multi-beam sonar
② Synchronized and accurate measurement of water level, flow velocity, water temperature, water quality and underwater terrain
3. Autonomous & Intelligent Navigation
① Manual remote control operation
② Autonomous cross-section straight-line navigation
③ Surface hovering for fixed-point measurement
④ Automatic obstacle avoidance via millimeter-wave radar
⑤ Intelligent return-to-home (triggered by low battery or signal loss)
⑥ Automatic speed adjustment
4. Emergency Command & Communication
Establish seamless audio and video connection between the site and command center to support remote command and decision-making.
II. Product Advantages
1. Superior Performance & Reliability
① High-precision positioning and orientation: Dual-antenna GNSS system compatible with BeiDou, ensuring accurate and stable positioning in complex environments
② Powerful propulsion: 1000W high-power long-service-life thrusters, capable of operating in rapid currents and rough waters
③ Intelligent control core: Highly integrated main controller with stable system and fast response
④ Professional data processing: Vessel control software and multi-functional measurement software guarantee authentic and reliable data
2. Comprehensive Safety Protection
① Sturdy anti-sink and anti-collision structure: Double-layer carbon fiber composite hull
② Active obstacle avoidance: 360° intelligent obstacle avoidance via millimeter-wave radar plus shallow water alarm
③ Navigation assurance: Intelligent return-to-home and automatic speed regulation
④ Black box data recording: Automatically store detailed navigation logs of multiple voyages for traceability and analysis
3. Efficient & User-friendly Operation
① Flexible operation mode switching: Remote control / Autonomous / Hover
② Beyond visual range remote control: Intelligent remote controller (1.5km radio range / Unlimited 4G control range)
③ Easy maintenance: Detachable upper hull cover, quick-plug thrusters for easy replacement, one-click external battery level check
④ Strong equipment compatibility: Closed moon pool design adapts to various scanning and measuring devices and reduces signal interference
4. Optimized Design
① Lightweight and high-strength carbon fiber hull with exquisite appearance
② Simplified circuit layout to lower failure rate
III. Technical Parameters
- Hull Dimensions: 1100570290mm
- Material: Polymer polyester carbon fiber & Kevlar
- Net Weight: 6.5kg
- Maximum Load Capacity: 26kg
- Wind & Wave Resistance: Class 4 wind, Class 3 waves
- Hull Type: Catamaran
- Ingress Protection: IP68
- Draft: 9.5cm
- Indicator Light: Two-color light for positioning and navigation status indication
- Maximum Speed: 7m/s
IV. Application Scenarios
Emergency Rescue
Man overboard search and rescue, disaster reconnaissance (flood, dam break, etc.), emergency communication relay
Public Security Law Enforcement
Water area patrol and security, smuggling and illegal immigration monitoring, illegal fishing inspection, security protection for key targets, evidence collection
Water Conservancy
Hydrological measurement (flow velocity & discharge), underwater topographic mapping, water quality monitoring, reservoir & river patrol, sedimentation survey
Environmental Monitoring
Pollution source investigation, water quality sampling and real-time monitoring, ecological survey
Scientific Research & Survey
Underwater geological exploration, underwater pipeline detection, auxiliary research for ocean and lake scientific expeditions
