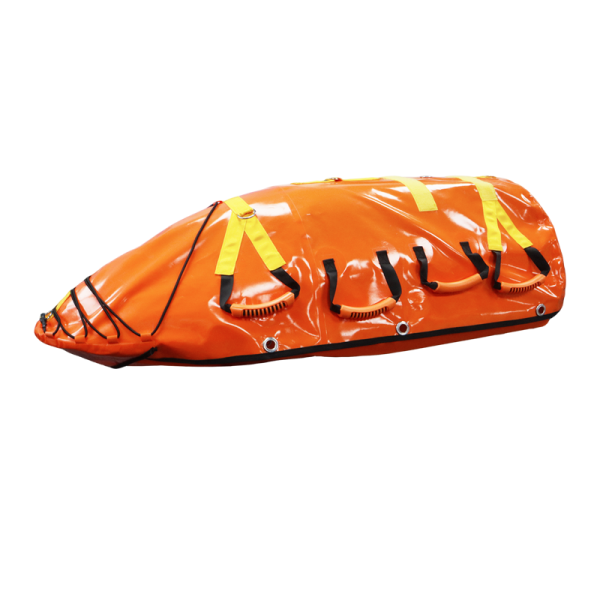

Water Rescue Remote-Control Robot Model XHX-KUN-02 Specification
1. Basic Specifications
| Item |
Parameter |
| Model No. |
XHX-KUN-02 (Pointed Airship-type Rescue Boat) |
| Overall Dimension |
1220×520×280mm |
| Net Weight |
14.2kg (with original lithium battery); portable for single person, fits in car trunk |
| Housing Material |
Thickened PVC coated fabric + high-density EPP buoyancy core; wear & corrosion resistant, compatible with seawater and acidic/alkaline river/lake water |
| Ingress Protection |
IP68 fully waterproof, allows temporary full submersion without malfunction |
2. Power & Navigation Performance
- Propulsion: 4 sets of ducted jet thruster motors, total rated power 3600W; infinitely variable differential steering, bidirectional forward/reverse cruising
- No-load Speed: 25.2km/h (7m/s); Full-load Manned Speed: 9.5km/h (2.6m/s)
- Load & Buoyancy: Rated load capacity 320kg (accommodates 5~6 adult survivors); total buoyancy ≥3500N
- Max Towing Force: 420kg, capable of towing inflatable dinghies and life rafts
- Sea State Resistance: Stable navigation under Grade 3 wind with wave height ≤1.8m, applicable for flood rapids
3. Remote Control & Intelligent System
- Remote Control Range: Standard Version – 3000m; HD FPV Premium Version – 4500~5000m (industrial long-distance control)
- Positioning System: GPS + Beidou dual-mode positioning; auto-return on signal loss / low battery with returning error ≤2m
- Self-righting Function: Automatic upright recovery within 2 seconds after capsizing, prevents overturn failure across all water conditions
- Airdrop Compatibility: Dropable from maximum 25m height; auto power-on upon water contact & auto power-off when out of water for motor protection
4. Battery & Endurance Parameters
- Battery Spec: 25.9V 28Ah lithium iron phosphate power battery with BMS overcharge/over-discharge protection
- Runtime: 75~85min under no-load; 42~52min under full manned load
- Standard Charging Time: 3.2 hours for full charge
5. Optional Upgrade Accessories
- 1080P real-time HD FPV + infrared searchlight for night rescue operation
- Onboard loudhailer for remote voice guidance of drowning victims to grab handholds
- Thermal imaging module for search in turbid water or nighttime conditions
- Optional side-mounted life rope release compartment
6. Structural Features
Four sets of anti-slip hand grips for survivors; front towing grommet and rear hauling ring; pre-fitted warning flag + hull strobe warning lamp for long-distance visibility on water surface
Product Pricing
- Premium HD FPV Version (4500m control + 1080P real-time video + night searchlight + remote intercom): USD 5,896
- Top-tier Search & Rescue Version (thermal imager + emergency supply compartment + 5km maritime-grade remote control): USD 9,860
