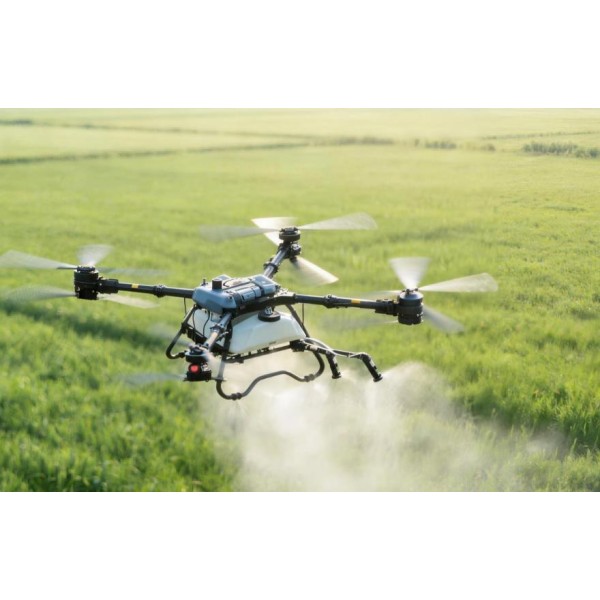

Multi-functional Heavy-lift Multirotor Agricultural UAV
This large agricultural aircraft integrates spraying, spreading and cargo transportation. Featuring heavy load capacity, high efficiency and modular design, it is suitable for large-scale modern agricultural operations.
I. Core Performance Parameters
Load Capacity & Volume
Liquid tank capacity: 180 L; transport container volume: 210 L; rated payload: 200 kg.
Maximum spraying flow rate: 60 L/min; operating efficiency up to 40 hectares per hour.
Operation Performance
Spray droplet size range: 30–500 μm; effective spray width: 8–15 meters.
Equipped with anti-clogging spiral spreading system for stable spreading of all types of granular materials.
Flight Specifications
Maximum flight range: 46.5 km; maximum flight endurance: 20 minutes.
Adopts coaxial twin-rotor structure delivering powerful thrust and outstanding flight stability.
II. Structural & Hardware Design
Airframe Design
Parallel inward-folding arms for compact storage and rapid deployment.
Airframe constructed from aerospace-grade aluminum alloy and carbon fiber, robust, durable and deformation-resistant.
All-carbon-fiber propellers feature high temperature resistance and superior safety performance.
Power Supply System
Standard configuration: 18S 35,000 mAh smart lithium battery paired with fast charger, supporting unlimited annual charge-discharge cycles.
Built-in battery protections including anti-collision, anti-puncture, over-temperature protection and automatic voltage balance to sustain continuous operation.
Perception & Navigation
Integrated radar, wide-angle HD cameras and dual-antenna RTK.
Supports 360° omnidirectional obstacle avoidance and centimeter-level precise positioning, enabling fully automatic night operations.
Compatible with multi-satellite systems including GPS, Beidou and GLONASS.
Modular System
Spraying, spreading and lifting modules can be rapidly swapped.
Over 90% of components are interchangeable across the whole machine, cutting maintenance costs by 35% and simplifying inspections and repairs.
III. Core Functions & Operation Modes
Three versatile operation modes realize multi-purpose single aircraft:
- Precision Spraying
Fitted with high-flow dual pumps and anti-drift centrifugal nozzles to reduce pesticide waste and phytotoxicity, ideal for large-field plant protection.
- Granular Spreading
Push-type anti-clog spiral spreader evenly distributes granular materials such as seeds and fertilizers.
- Heavy-lift Transportation
Quick-detachable lifting hooks enable transport of agricultural supplies, saplings and other goods, covering agricultural logistics and short-distance freight transport.
IV. Matching Package Configurations
Two complete kits available for optional selection according to actual demands:
Agricultural Operation Kit
Full set of plant protection accessories including airframe, motors, nozzles, dual pumps, flight controller, remote controller, 3 smart batteries, charger, RTK module and 360° radio station. Generator is optional extra.
Transport Operation Kit
Removes spraying-related components, equipped with lifting hook container, dedicated batteries and charging equipment, optimized for material transportation tasks.
V. Product Value Positioning
Targeted at modern agriculture, this model helps boost crop yields, cut agricultural material consumption and save labor costs.
With heavy payload, long flight range and high reliability, it perfectly fits large farms and mass agricultural work.
Thanks to expandable modular design, it can also be deployed for industrial material delivery and other scenarios.
