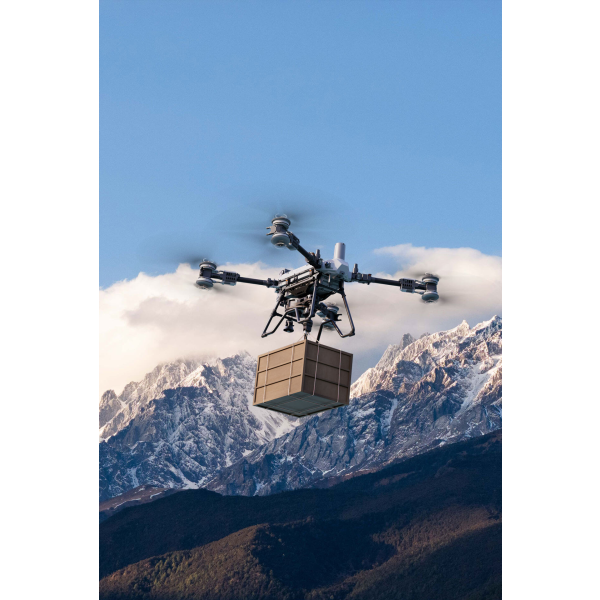

FlyCart 200 (FC200) – Full Technical Specifications

1. General Information & Dimensions

• Model: FlyCart 200 (FC200)
• Configuration: Coaxial dual-rotor design, 8-axis power system

Empty Weight (without batteries)

• With DL200 Cargo Winch System: 98.8 kg
• With Premium Aerial Hoist System: 103.3 kg
• Maximum Diagonal Wheelbase: 2699 mm

Dimensions (Length × Width × Height)

• Arms & propellers fully extended: 3334 × 3055 × 1045 mm
• Arms extended, propellers folded: 1786 × 1852 × 1045 mm
• Arms & propellers folded (without parachute): 1154 × 984 × 1045 mm
• Arms & propellers folded (with parachute): 1272 × 984 × 1045 mm
• Folding Mechanism: Arms fold inward toward the fuselage
• Ingress Protection Rating: IP55 (dustproof and splash-proof)
• Operating Temperature: −20 °C ~ 40 °C

2. Payload & Transport Capacity (Core Specifications)

• Maximum Single-Drone Payload: 200 kg (full payload maintained at an altitude of 3000 m)

Multi-Drone Collaboration

• Dual-drone team: 360 kg
• Quad-drone team: 600 kg (requires dedicated collaboration kit)

Payload Capacity by Altitude

• 3000 m: 200 kg (full load)
• 4500 m: 170 kg
• 6000 m: 140 kg

Cargo Hoist Systems

• DL200 Standard Winch System: Max. payload 200 kg; equipped with fixed hook and automatic release hook
• Premium Aerial Hoist System: 30 m long-distance hoisting, optimized for high-altitude and mountainous operations

3. Flight Performance (Tested at sea level, 25 °C, windless conditions)

1. Speed

• Maximum horizontal speed: 25 m/s (90 km/h, no load); 20 m/s (72 km/h, full load)
• Maximum climb/descent speed: 5 m/s
• Maximum wind resistance: 12 m/s (Level 6 wind)

2. Flight Range & Hover Time

3. Flight Altitude & Positioning Accuracy

• Maximum flight altitude: 6000 m

Hovering Accuracy

• RTK enabled: Horizontal ±10 cm; Vertical ±10 cm
• RTK disabled: Horizontal ±0.6 m; Vertical ±0.3 m
• GNSS Support: Full multi-system reception — GPS + Galileo + BeiDou + GLONASS

4. Power System

• Voltage Platform: 120 V high-voltage system (doubled from previous 60 V version)
• Motors: New flat-wire motors; slot fill rate increased by 41%. Maximum thrust per axis: 183 kg
• Propellers: 68-inch carbon fiber propellers with locking snap design
• Battery Model: DB2400 Intelligent Flight Battery
• Battery Capacity: 46 Ah
• Charging Speed: 7–8 minutes fast charging
• Battery Configuration: Flexible switch between dual-battery and quad-battery modes; hot-swap supported

5. Perception & Safety System (11 Integrated Sensors)

• LiDAR: 256-line LiDAR; point cloud density increased by 1.5×; tiny object detection capability enhanced 5×
• Millimeter-Wave Radar: 360° forward radar + downward radar + rear radar
• Vision System: Triple fisheye cameras + dual FPV cameras(forward & downward) + rear binocular vision

FPV Camera Specifications

• Forward FPV: 2688 × 1520 resolution
• Downward FPV: 4000 × 3000 resolution, supports 1×–5× digital zoom

Safety Features

6. Video Transmission & Control

• Video Transmission System: Enhanced O4 system with 8 antennas; maximum transmission range up to 40 km
• Signal Enhancement: Dual 4G backup modules + signal relay system for stable transmission in obstructed environments
• Remote Controller: RC Plus 2 (supports dual-operator control)
• Mobile Applications: DJI Delivery Operation Platform, Delivery App, DJI Logistics Service App (multi-terminal collaborative management)

7. Interfaces & Expandability

• Dual PSDK Ports: Compatible with third-party payloads (loudspeakers, searchlights, sensors, etc.)
• Hook Release Control: Supports remote electric release and emergency manual release

8. Package Configurations (Reference Prices)

• Standard Cargo Hoist Package (C12000 Version): ¥133,999



  Including: Aircraft body + DL200 cargo winch system + 4 × DB2400 batteries + 2 × C12000 chargers + 2 × RC Plus 2 remote controllers + parachute + basic maintenance service + 1.3 million RMB third-party liability insurance
• Premium Aerial Hoist Package: Starting from ¥160,999 (equipped with 30 m long-distance aerial hoist system)
