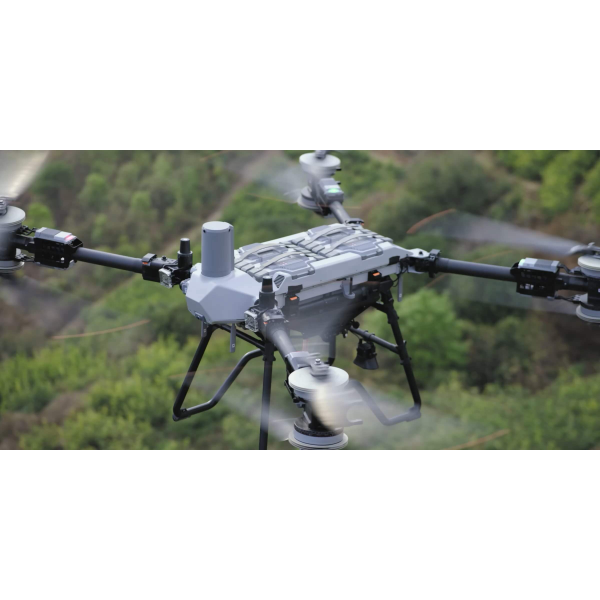

Dji T200 agricultural unmanned aircraft

Dji T200 agricultural unmanned aircraft

{{ product.price_format }}
{{ product.origin_price_format }}
Quantity:
Brand: 大疆
SKU:{{ product.sku }}
Model: {{ product.model }}
weight: {{ product.weight }} Kilogram

{{ variable.name }}

{{ value.name }}
Product Details

DJI T200 Agricultural Drone - Full Specifications



1. Basic Information


  • Product Name: DJI T200 Agricultural Drone
  • Release Date: April 2026
  • Positioning: Heavy-lift transportation for agriculture, forestry, animal husbandry and fisheries; delivery of farm supplies & agricultural products; mountain forest resupply; emergency material airdrop
  • Official Starting Price: ¥99,999 (Standard Lifting Package)
  • Empty Weight: 92.3 kg (including DL200 lifting system, excluding batteries and parachute)
  • Maximum Payload: 200 kg (single drone); 360 kg (dual-drone collaboration)
  • Applicable Altitude: 0–3000 m (full payload maintained at 3000 m)
  • Operating Temperature: -20 ℃ ~ +40 ℃
  • Ingress Protection: IP55 (dustproof and splash-proof)

2. Dimensions & Structure



Overall Dimensions (Length × Width × Height)


  • Arms unfolded + propellers unfolded: 3334 × 3055 × 1045 mm
  • Arms unfolded + propellers folded: 1786 × 1852 × 1045 mm
  • Arms folded + propellers folded: 1154 × 984 × 1045 mm
  • Maximum Diagonal Wheelbase: 2699 mm
  • Folding Design: Arms fold inward towards the airframe

3. Flight Performance


  • Hovering Accuracy (RTK enabled): Horizontal ±10 cm; Vertical ±10 cm
  • Hovering Accuracy (RTK disabled): Horizontal ±0.6 m; Vertical ±0.3 m
  • Maximum Ascent / Descent Speed: 5 m/s
  • Maximum Wind Resistance: 6 m/s (approx. Level 4 wind)
  • Maximum Horizontal Flight Speed: Approx. 12 m/s (Recommended operating speed: 6–10 m/s)

Maximum Hover Time (25 ℃, windless, sea level)


  • Full load with 4 batteries: 7 minutes
  • Full load with 2 batteries: 4 minutes
  • No load with 4 batteries: 25 minutes
  • No load with 2 batteries: 17 minutes

4. Power System


  • Power Architecture: 120 V high-voltage platform, 4 sets of coaxial dual rotors (8-axis power system)
  • Motor Model: 16524 flat wire motor
  • Motor Specifications: Stator 165 × 24 mm; KV rating: 29 rpm/V
  • Motor Features: 41% higher slot filling rate, high torque, fast response and low heat generation
  • Propellers: 68-inch 2-blade foldable carbon fiber propellers with locking snap fasteners for reduced vibration
  • Rotor Quantity: 8 pairs (16 propellers in total)

5. Battery & Charging


  • Battery Model: DJI DB2400 Smart Flight Battery
  • Battery Capacity: 46 Ah
  • Battery Voltage: 120 V
  • Battery Configuration: Supports 2-battery / 4-battery parallel connection
  • Fast Charging Time: Fully charged in 7–8 minutes (with C18000 charger)
  • Hot Swap: Supported; batteries can be replaced without powering off the drone

Typical Operating Endurance (4 batteries)


  • Full 200 kg load: Approx. 7 minutes
  • Half 100 kg load: 12–15 minutes

6. Safety & Perception System (11 Sensors for Omnidirectional Obstacle Avoidance)


  • 360° rotating millimeter-wave radar (primary obstacle avoidance)
  • Rear millimeter-wave radar
  • Downward millimeter-wave radar
  • 256-line LiDAR (high-precision ranging)
  • Forward triple fisheye vision
  • Rear binocular vision

Dual FPV Cameras


  • Front FPV: 2688 × 1520
  • Downward FPV: 4000 × 3000, 5× digital zoom
  • Video Transmission: 8-antenna enhanced O4 transmission system, maximum transmission range: 40 km

Safety Features


  • Full-frame parachute (standard equipment)
  • Dual-battery redundancy design
  • ADS-B air traffic alert system
  • High-power loudspeaker

7. DL200 Lifting System (Standard)


  • Rated Lifting Capacity: 200 kg
  • Rope Length: Standard 15 m (30 m optional)
  • Functions: Automatic swing suppression, constant-speed retraction & release, emergency rope jettison, overload protection
  • Mounting Type: Quick-release design, supports two modes: direct lifting / cargo box transport
  • Optional Cargo Box: 120 L waterproof cargo box (automatic loading & unloading)

8. Flight Controller & Navigation


  • Flight Controller: Latest DJI agricultural flight controller, supports multi-drone collaboration
  • Positioning System: D-RTK 3 Agricultural Edition (centimeter-level positioning)
  • Navigation Mode: Integrated GNSS (GPS / BeiDou / GLONASS) + RTK + vision positioning

Operating Modes


  • Manual mode, semi-automatic mode, fully automatic route flight, multi-drone collaborative transport

9. Standard & Optional Accessories



Standard Accessories


  • DL200 Lifting System
  • Full-frame parachute
  • Dual FPV cameras
  • 8-antenna O4 video transmission system
  • D-RTK 3 Agricultural Edition
  • Remote controller with high-brightness display

Optional Accessories


  • C18000 smart charger (7–8 min fast charging)
  • D14000iE all-in-one variable frequency charging station (for field use without mains power)
  • CC15000 vehicle-mounted charger
  • 4G enhanced video transmission kit
  • Multi-drone collaboration kit (SDR dongle)
  • 120 L waterproof cargo box

10. Typical Application Scenarios


  • Agriculture: Transportation of fertilizers, seeds and pesticides; transfer of harvested fruits and vegetables
  • Forestry: Seedling lifting and delivery; transportation of wildfire prevention supplies
  • Animal Husbandry: Fodder and veterinary supply delivery; transport for remote pastures
  • Emergency Rescue: Airdrop of supplies in flood and earthquake-hit areas; lifting of rescue equipment
