1. Aircraft
- Model: Matrice 30 (3-sensor: Wide-angle + Zoom + Laser Rangefinder) / Matrice 30T (4-sensor: Added thermal imaging camera)
- Dimensions (Unfolded, excluding propellers): 470 × 585 × 215 mm
- Dimensions (Folded): 365 × 215 × 195 mm
- Diagonal Wheelbase: 668 mm
- Weight (with dual batteries): 3770 ± 10 g
- Max Takeoff Weight: 4069 g (C2 certified: 3998 g)
- Ingress Protection: IP55
- Operating Temperature: -20℃ ~ 50℃
- GNSS: GPS + Galileo + BeiDou + GLONASS (RTK enabled)
2. Flight Performance
- Max Horizontal Speed: 23 m/s
- Ascent/Descent Speed: 6 m/s / 5 m/s; Oblique Descent: 7 m/s
- Max Service Ceiling: 5000 m (Standard 1671 propellers) / 7000 m (High-altitude 1676 propellers)
- Wind Resistance: 12 m/s
- Flight Time (Lab Test): Hovering: 36 mins / Max flight time: 41 mins
- Hovering Accuracy (No Wind)
- Vision Positioning: Vertical ±0.1 m, Horizontal ±0.3 m
- GPS Positioning: Vertical ±0.5 m, Horizontal ±1.5 m
- RTK Positioning: Vertical & Horizontal ±0.1 m
- RTK Accuracy (FIX): Horizontal: 1 cm+1 ppm; Vertical: 1.5 cm+1 ppm
- Max Angular Velocity: Pitch: 150°/s, Yaw: 100°/s
- Max Pitch Angle: 35° (N-mode with forward vision enabled: 25°)
3. Gimbal & Integrated Sensors
- Gimbal Vibration Range: ±0.01°
- Controllable Range: Pan ±90°, Tilt -120°~+45°
- Mechanical Range: Pan ±105°, Tilt -135°~+60°, Roll ±45°
Wide-angle Camera
- Sensor: 1/2" CMOS, 12 MP
- Focal Length (Equivalent): 24 mm, DFOV: 84°, Aperture: f/2.8
- Video: 4K/30 fps; Photo: 4000×3000
Zoom Camera
- Sensor: 1/2" CMOS, 48 MP
- Optical Zoom: 5–16×, Equivalent Focal Length: 113–405 mm, Aperture: f/2.8–4.2
- Max Hybrid Zoom: 200×; Video: 4K/30 fps; Photo: 8000×6000 (8K)
Thermal Imaging Camera (Matrice 30T Only)
- Uncooled VOx Sensor, NETD ≤50 mK@f/1.0
- Equivalent Focal Length: 40 mm, DFOV: 61°, Aperture: f/1.0
- Resolution: Super Resolution 1280×1024 / Standard 640×512
- Temperature Measurement Accuracy: ±2℃ or ±2% (whichever is larger)
- Temperature Range: High Gain -20℃~150℃; Low Gain 0℃~500℃
Laser Rangefinder
- Wavelength: 905 nm, Class 1M
- Measuring Range: 3–1200 m; Accuracy: ±(0.2 m+D×0.15%)
FPV Camera
- Resolution: 1080p, DFOV: 161°, Frame Rate: 30 fps
4. Obstacle Sensing System
- Vision System: 6-direction binocular vision + near-infrared
- Forward detection range: 0.6–38 m; Other directions: 0.5–33 m
- Infrared Sensing: 0.1–10 m, FOV: 30°
5. Video Transmission & Communication
- Transmission System: O3 Enterprise, 4 antennas (2 transmit, 4 receive)
- Max Transmission Distance: 15 km (FCC) / 8 km (CE/SRRC)
- Simultaneous Video Streams: Up to 3 channels of 1080p
- Connectivity: Wi‑Fi 6 / Bluetooth 5.1
- Optional 4G Backup Link
6. Battery & Charging (TB30 Intelligent Battery)
- Capacity: 5880 mAh, 26.1 V, 6S, 131.6 Wh
- Weight: Approx. 685 g per battery
- Charging (BS30 Battery Station)
- 2 batteries from 20% to 90%: Approx. 30 mins
- 0% to 100%: Approx. 50 mins
- Operating Temperature: -20℃~50℃
7. Remote Controller (RC Plus)
- Display: 7.02 inch, 1920×1200, 1200 cd/m²
- Battery Life: Built-in battery: 3.3 hrs; Built-in + WB37 external battery: Approx. 6 hrs
- Ingress Protection: IP54
- Operating Temperature: -20℃~50℃

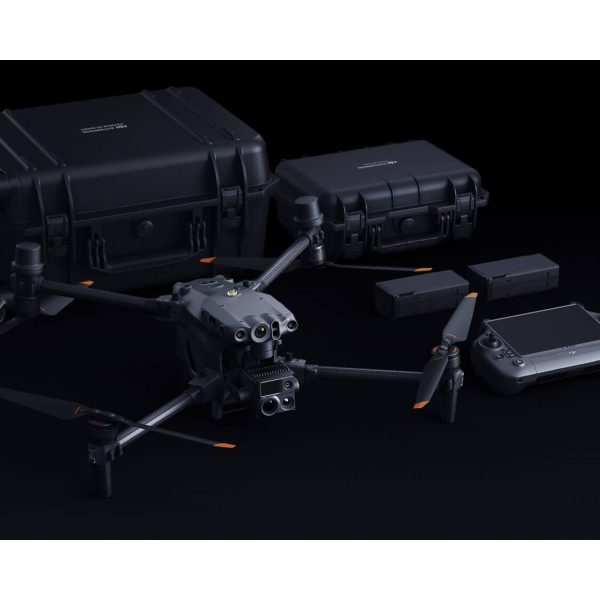

8. Standard Package Contents
- 1 × Matrice 30 / Matrice 30T Aircraft
- 2 × TB30 Intelligent Flight Battery
- 4 × 1671 Propellers
- 1 × RC Plus Remote Controller
- 1 × BS30 Intelligent Battery Station
- Data cables, User Manual and other accessories
