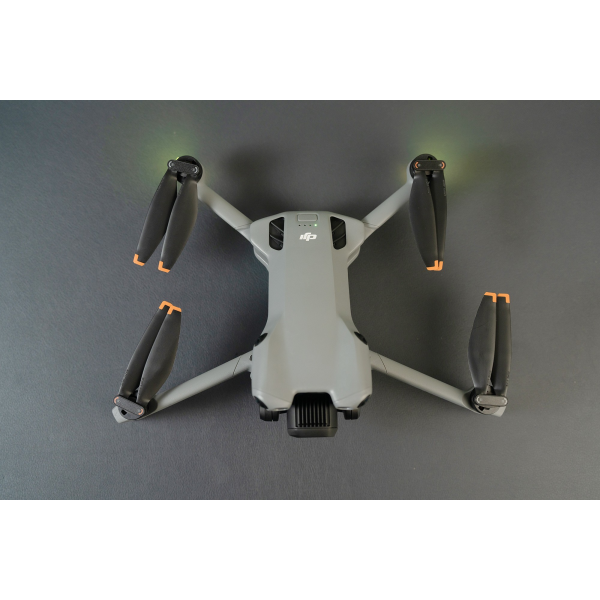

DJI Mini 5 Pro Specifications

I. Airframe

• Dimensions: Folded (without propellers): 157 × 95 × 68 mm; Unfolded (with propellers): 255 × 181 × 91 mm
• Weight: 249.9 g (including battery, propellers and built-in storage)
• Ingress Protection: No official IP rating; splash-resistant, not fully waterproof
• Operating Temperature: -10 ℃ to 40 ℃
• Maximum Takeoff Altitude: 6000 m
• Wind Resistance: 12 m/s (Level 6 wind)
• Hovering Accuracy (GNSS): Vertical: ±0.1 m; Horizontal: ±0.3 m

II. Flight Performance

Maximum Flight Time

• Standard Battery (2788 mAh): 36 minutes
• Extended Flight Battery (4860 mAh): 52 minutes

Maximum Flight Range

• Standard Battery: 21 km
• Extended Flight Battery: 32 km

Maximum Horizontal Speed (sea level, windless)

• Sport Mode (S): 19 m/s (68.4 km/h)
• Normal Mode (N): 15 m/s (54 km/h)
• Cine Mode (C): 10 m/s (36 km/h)

Ascent / Descent Speed

• Sport Mode: Ascent 10 m/s, Descent 8 m/s
• Normal Mode: Ascent 5 m/s, Descent 5 m/s
• Maximum Tilt Angle: 38° (S), 25° (N), 10° (C)
• Maximum Angular Rotation Speed: 200°/s

III. Integrated Gimbal & Imaging System

• Camera: 1-inch CMOS sensor, 50 million pixels, f/1.8 aperture, 24 mm equivalent focal length, mechanical shutter
• Dynamic Range: 14 stops, supports HDR video

Video Modes

• 4K/60fps HDR (10-bit D-Log M)
• 4K/120fps slow motion
• 2.7K/60fps, 1080p/120fps

Photography

• 50MP RAW (DNG) / JPEG; Burst shooting at 8 frames per second
• Digital Zoom: Up to 4× (2× at 4K resolution, 4× at 1080p resolution)

Gimbal

• 3-axis mechanical stabilization, 225° rotation range, 90° lossless portrait shooting, 55° upward shooting
• Tilt: -140° ~ +55°; Roll: ±45°; Pan: ±112.5°

IV. Perception & Navigation

• Obstacle Sensing System: Omnidirectional active obstacle detection, effective down to 1 lux for night scenarios (front, rear, left, right, top and bottom)
  • Front: LiDAR + binocular vision (detects wires as thin as 12 mm)
  • Downward: 3D infrared sensors + binocular vision
  • Rear & Side: Binocular vision
• Navigation System: GPS + BeiDou + Galileo (tri-band GNSS)
• Video Transmission: O4+, maximum range 20 km, 10-bit high-definition stream, latency approx. 100 ms

Intelligent Functions

• AI Spot-Check for repetitive inspection missions
• ActiveTrack 6.0 omnidirectional smart follow (Standard / Cycling modes)
• Focus Track, Orbit Mode, Time-lapse shooting
• Onboard Storage: 42 GB, compatible with microSD cards for expansion

V. Battery & Charging

• Standard Flight Battery: 6S Li-ion, 2788 mAh, 22.2 V, 36-minute flight time
• Extended Flight Battery: 6S Li-ion, 4860 mAh, 22.2 V, 52-minute flight time
• Charging: With 65 W power adapter; Standard battery fully charged in approx. 55 minutes, Extended battery fully charged in approx. 80 minutes
• Battery Management: Low-temperature self-heating, overcharge & overdischarge protection, intelligent battery health monitoring

VI. Compatibility & Accessories

• Remote Controller: DJI RC 2 (7-inch high-brightness display, 1000 cd/m²)
• Propellers: 8747F foldable low-noise propellers (wind-resistant & quiet)
• Optional Accessories: ND filter set, CPL polarizing filter, battery hub, carrying case

VII. Core Upgrades vs DJI Mini 4 Pro

• Imaging: 1/1.3" sensor upgraded to 1-inch; 48MP upgraded to 50MP; aperture changed from f/1.7 to f/1.8
• Flight Time: 34 minutes upgraded to 36 minutes (standard) / 52 minutes (extended, 53% improvement)
• Obstacle Avoidance: Pure binocular vision upgraded to omnidirectional binocular vision plus front LiDAR, greatly enhanced night detection capability
• Video Transmission: O4 upgraded to O4+; range increased from 10 km to 20 km with 10-bit color depth
• Gimbal: Rotation range expanded from 180° to 225°, supports lossless portrait shooting
